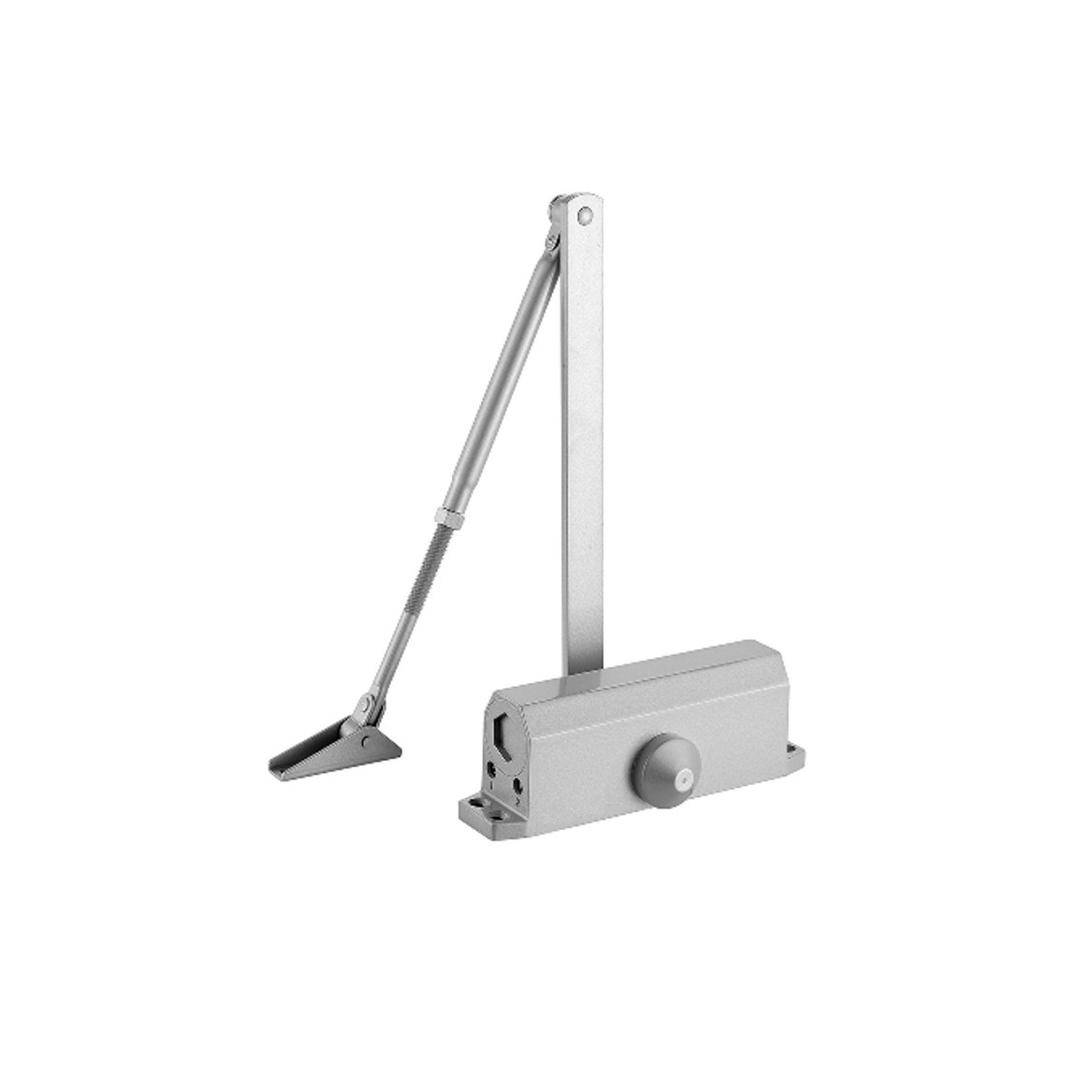

Die cast aluminum body, modern slimline design sutable for doors opening onto adjacent walls. Available in three strengths with one body size suitable for single action doors, either right hand or left hand. Reversible for standard, top jamb and parallel arm installations.

Fixings provided for both timber and metal doors. Color matched dress plates with conceal fxings can be fxed after installation. Easy to follow installation guide and full size template packed with every unit.

DA-Delayed Actlon

The delay action function can extend the closing time of the door leaf from 180° to 65°, allow convenient passage through the opening door. *Not the same as a hold open.

BC-Back Check

Back check control provides a strength adjustable braking action from about 60° to help prevent damage to door or wall. If the door is opened with undue force, a door stopper may still be needed.

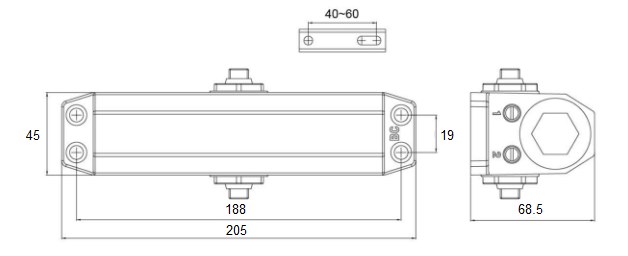

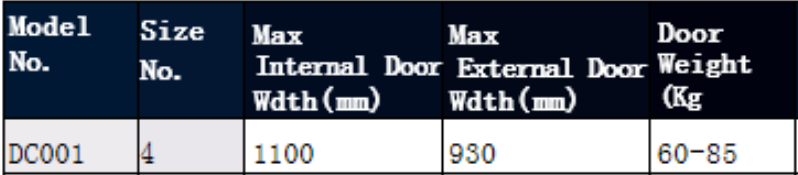

Dimension & Size Chart
